Standard Guidewires
Representative focus areas
- Full spring construction
- Stainless steel core
- PTFE or custom coatings
Acme Monaco
Guidewires
Acme Monaco delivers on every level. With advanced engineering and state-of-the-art facilities, we offer design and production capabilities that are both cost-effective and tailored to your precise guidewire needs.
Overview
Key capabilities
Technical summary, scope, and applications
Our guidewires are known for elegant flexibility and feature a relatively stiff elongated body portion and a guidable distal tip that ensures optimal performance. Packaging takes place in four Class 8 – 100,000 compliant clean rooms, providing a contamination-free environment that meets the highest industry standards.

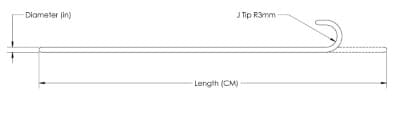

- Diameters range from 0.014" (0.36 mm) to 0.080" (2.03 mm)
- Lengths span from 20 cm to 500 cm with custom lengths available
- Tip designs include straight, angled, radius, "J", and pigtail configurations
- Coating options include PTFE, uncoated, or custom coatings
Construction Types
We offer guidewires constructed using standard full spring, Lunderquist, or moveable core designs, utilizing high-grade stainless steel types 302, 304, and 316. Superior core materials such as 304V stainless and nickel titanium are available.
Slidewire® Polymer Jacketed Guidewires:
- Engineered for precise 1:1 torque response
- Outer diameters from 0.014" to 0.052"
- Nickel titanium core with custom material options
- Black polymer jacket with tungsten for radiopacity
- Optional radiopaque markers for improved visibility
Packaging
Standard bulk shipping is in non-sterile double polybags. Additional packaging options are available:
- Circular dispenser with clip connectors
- Single loop dispenser
- Standard, non-sterile peel pouch labeled with your company name, lot number, and date
- Custom labeling with your company name and logo, graphic art, and technical data
Product lines
Categories
Slidewire® Polymer Jacketed
Representative focus areas
- 1:1 torque response
- NiTi core construction
- Hydrophilic coating options
Guidewire Builder
Design the perfect guidewire for your application. Select dimensions, materials, and configurations; we’ll handle the precision.
Ready to get started?
Share your guidewire construction, materials, coatings, and performance targets—we’ll align capability with your device program.
